NET CAMERA BULLET H.265+ 4MP/INSIGHT S345-4G(4MM) TP-LINK
<
>
<
>
Images are illustrative. The product shown may differ from the one offered or include components not part of the product set.
VendorTP-LINK
Product codeINSIGHT S345-4G(4MM)
Warranty
3 years
Price€548.70
Price (excl. VAT)€442.50
Availability1 pc
Ships out in1-3 bd
Ships quicker
4G and 3 LAN Ports, Hassle-free Deployment

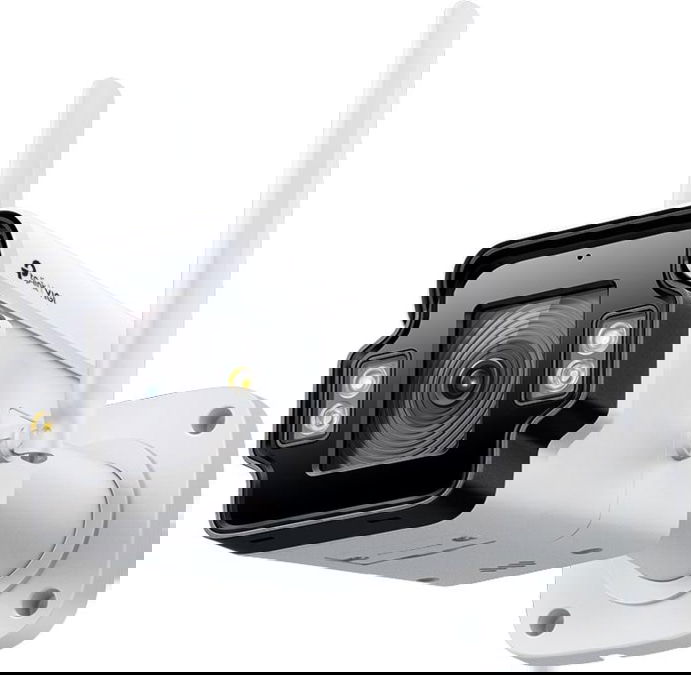

4MP Outdoor Full-Color 4G Bullet Network Camera
3 LAN Ports Meet Minimal Deployment Effort
InSight S345-4G offers industry-first three LAN ports, enabling simultaneous connectivity for up to three devices as you need. It is ideal for coupling with solar power systems to eliminate additional wiring deployments.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
LightPro Night Vision Technology
The VIGI LightPro Night Vision Technology intelligently switches between IR night vision and full-color night vision by detecting people or vehicles. This allows the camera to capture clearer and more critical details with the white light on, and to reduce light pollution and energy consumption with the IR light on at most time, effectively adapting to a broader range of scenarios.
Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
- 4MP Super-High Definition and 24h Full-Color
- People & Vehicle Analytics§
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
Summary:
TP-Link INSIGHT S345-4G. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 80.4°, Lens viewing angle, vertical: 41.8°, Lens viewing angle, diagonal: 98.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m
Vendor Homepage:
https://www.tp-link.com/ae/business-networking/vigi-network-camera/insight-s345-4g/
Category Code:
FNC
Unit Box Height:
0.16
Unit Box Length:
0.325
Unit Box Width:
0.13
Form factor:
Bullet
Mounting type:
Wall
Product colour:
White
Housing material:
Metal
Protection features:
Waterproof
International Protection (IP) code:
IP66
Weatherproof:
Yes
Type:
IP security camera
Connectivity technology:
Wired
Placement supported:
Outdoor
Maximum operating distance:
80 m
Wide Dynamic Range (WDR):
Yes
Day/night mode:
Yes
Infrared (IR) cut-off filter:
Yes
Remote viewing:
Yes
Antenna type:
External
Antennas quantity:
2
Dynamic range:
120 dB
Minimum illumination:
0 lx
Lens viewing angle, horizontal:
80.4 °
Lens viewing angle, vertical:
41.8 °
Lens viewing angle, diagonal:
98.7 °
Tilt angle range:
0 - 90 °
Camera shutter speed:
1/3 to 1/10000 s
Optical sensor size:
1/2.7 "
Progressive scan:
Yes
Sensor type:
CMOS
Detect distance:
80 m
Observe distance:
33 m
Recognize distance:
16 m
Fixed focus:
Yes
Identify distance:
8 m
Maximum aperture number:
1.6
Fixed focal length:
4 mm
Night vision:
Yes
LED type:
IR/White
Maximum resolution:
2688 x 1520 pixels
Total megapixels:
4 MP
Video compression formats:
H.264/H.264+/H.265/H.265+
Supported graphics resolutions:
1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/2688 x 1520
Video recording:
Yes
Back Light Compensation (BLC):
Yes
Bit rate:
Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps
Bit rate control:
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR):
Yes
Highlight Compensation (HLC):
Yes
Image quality adjustment:
Brightness/Contrast/Mirror/Saturation/Sharpness
Built-in speaker(s):
Yes
Audio system:
2-way
Audio input channels:
1.0 channels
Audio output channels:
1.0 channels
Audio formats supported:
G.711 A-law
Sample rate:
8 kHz
Built-in microphone:
Yes
Number of microphones:
1
Bit rate range:
0 - 64 Kbit/s
Ethernet LAN:
Yes
Supported network protocols:
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Wi-Fi:
No
Bluetooth:
No
SIM card slot:
Yes
SIM card type:
NanoSIM
Mobile network generation:
4G
4G standard:
LTE-TDD & LTE-FDD
Live view:
Yes
Compatible memory cards:
MicroSD (TransFlash)
Maximum memory card size:
512 GB
Ethernet LAN (RJ-45) ports:
3
DC-in jack:
Yes
Built-in siren:
Yes
Password protection:
Yes
Alert notification type:
Push notification
Detection distance:
120 m
Digest authentication:
Yes
HTTPS encryption:
Yes
Human and vehicle targets classification:
Yes
IP address filtering:
Yes
Mirror:
Yes
Motion sensor:
Yes
Video motion detection:
Yes
Web-based management:
Yes
Web browser:
Yes
Cloud-managed:
Yes
Reset button:
Yes
Power source type:
DC
Power consumption (max):
9.7 W
Power consumption (Power over Ethernet (PoE)):
10.7 W
DC output voltage:
12
Operating temperature (T-T):
-30 - 60 °C
Storage temperature (T-T):
-40 - 60 °C
Operating relative humidity (H-H):
0 - 95 %
Storage relative humidity (H-H):
0 - 95 %
Width:
122 mm
Height:
101 mm
Length:
256 mm
Weight:
1090 g
Number of cameras:
1
Mounting kit:
Yes
Screws included:
Yes
Drilling template included:
Yes
Manual:
Yes
Unit Calculated Weight:
1.61 kg
Product Net Weight:
1.09 kg
Unit Calculated Volume:
0.00676 cubm
Units per Shipping Box:
1
Shipping Box Weight:
1.612 kg
Shipping Box Height:
16 cm
Shipping Box Depth:
32.5 cm
Shipping Box Width:
13 cm
Name:
NET CAMERA BULLET H.265+ 4MP/INSIGHT S345-4G(4MM) TP-LINK
Model:
InSight S345-4G
