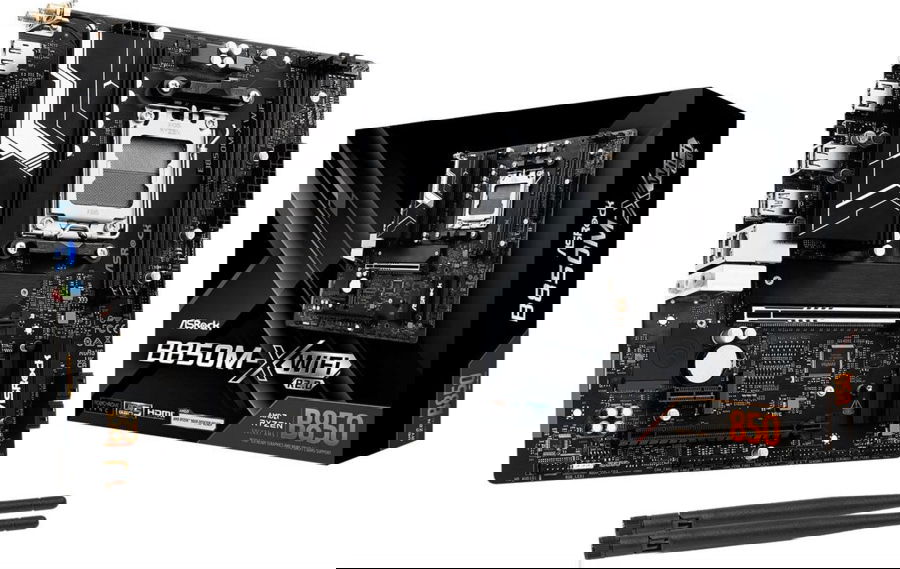

Asrock B850M-X WiFi R2 AMD B850 Socket AM5 micro ATX

Product image of Asrock B850M-X WIFI R2.0
  • Product image of Asrock B850M-X WIFI R2.0 1
  • Product image of Asrock B850M-X WIFI R2.0 2
  • Product image of Asrock B850M-X WIFI R2.0 3
  • Product image of Asrock B850M-X WIFI R2.0 4
  • Product image of Asrock B850M-X WIFI R2.0 5
  • Product image of Asrock B850M-X WIFI R2.0 6

Images are illustrative. The product shown may differ from the one offered or include components not part of the product set.

VendorAsrock
Product codeB850M-X WIFI R2.0
Warranty 3 years
Price€132.80
Price (excl. VAT)€107.10
Ships in 3-5 bd
Quantity5+ pcs

Ships quicker

Supported processor sockets:
Socket AM5
Processor socket:
Socket AM5
Compatible processor series:
AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Processor manufacturer:
AMD
Parallel processing technology support:
Not supported
Maximum resolution:
3840 x 2160 pixels
HDCP:
Yes
Windows operating systems supported:
Windows 11 x64, Windows 10 x64
Motherboard chipset family:
AMD
Audio chip:
Realtek ALC897
Product colour:
Black
Motherboard chipset:
AMD B850
Audio output channels:
7.1 channels
Motherboard form factor:
micro ATX
Number of memory slots:
2
Supported memory types:
DDR5-SDRAM
Memory slots type:
DIMM
Maximum internal memory:
128 GB
ECC сompatibility:
ECC & Non-ECC
Memory channels:
Dual-channel
Width:
244 mm
Depth:
226 mm
Mobile network connection:
No
LAN controller:
Dragon RTL8125BG
Ethernet interface type:
2.5 Gigabit Ethernet
Bluetooth:
Yes
Bluetooth version:
5.2
Top Wi-Fi standard:
Wi-Fi 6E (802.11ax)
MU-MIMO:
Yes
Wi-Fi:
Yes
Ethernet LAN:
Yes
Number of chassis fan connectors:
3
Front panel audio connector:
Yes
RGB LED pin header:
Yes
CPU fan connector:
Yes
TPM connector:
Yes
ATX Power connector (24-pin):
Yes
EPS power connector (8-pin):
Yes
Number of EPS power connectors (8-pin):
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
2
Number of SATA III connectors:
4
Number of CPU fan connectors:
2
USB Type-C ports quantity:
1
12V power connector:
Yes
USB 2.0 connectors:
2
Number of RGB LED pin headers:
1
BIOS type:
UEFI AMI
Screws included:
Yes
Cables included:
SATA
Supported storage drive types:
HDD & SSD
RAID levels:
0, 10, 1
RAID support:
Yes
Supported storage drive interfaces:
PCI Express 4.0, PCI Express 5.0, SATA III
HDMI ports quantity:
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
3
Line-in:
Yes
USB 2.0 ports quantity:
2
Microphone in:
Yes
DisplayPort version:
1.4
HDMI version:
2.1
Audio output:
3.5 mm
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:
1
Ethernet LAN (RJ-45) ports:
1
DisplayPorts quantity:
1
Number of M.2 (E) slots:
1
PCI Express x16 (Gen 4.x) slots:
1
Number of M.2 (M) slots:
2
PCI Express x1 (Gen 4.x) slots:
1
PCI Express x16 (Gen 5.x) slots:
1
2nd M.2 largest key size:
2280
2nd M.2 highest PCI Express generation:
4.0
1st M.2 largest key size:
2280
1st M.2 highest PCI Express generation:
5.0
Warnings:
Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage.
