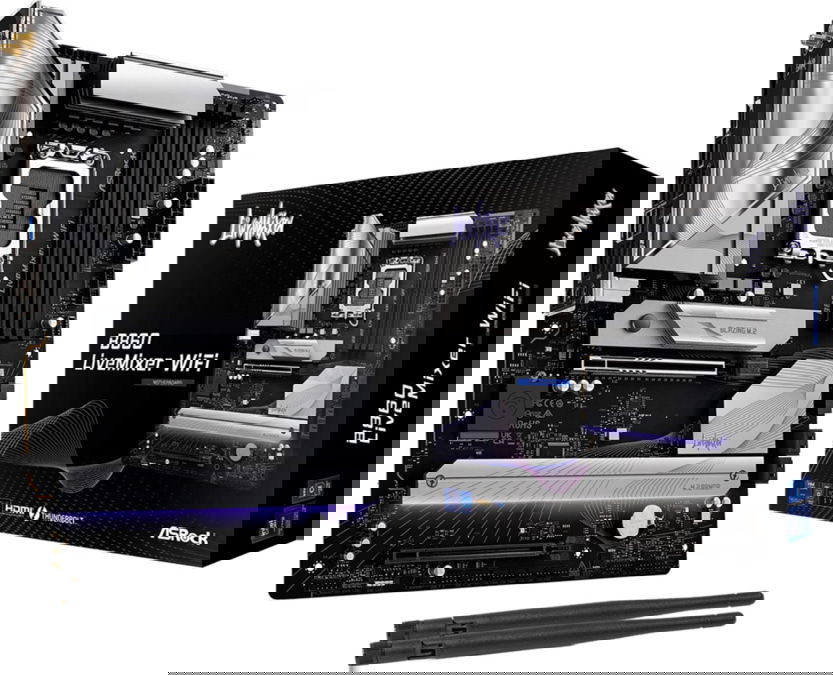

Asrock B860 LiveMixer WiFi Intel B860 LGA 1851 (Socket V1) ATX
<
>
<
>
Images are illustrative. The product shown may differ from the one offered or include components not part of the product set.
VendorAsrock
Product codeB860 LIVEMIXER WIFI
Warranty
3 years
Price€222.10
Price (excl. VAT)€179.11
Availability2 pcs
Ships out in4-7 bd
Processor manufacturer:
Intel
Compatible processor series:
Intel Core Ultra (Series 2)
Processor socket:
LGA 1851 (Socket V1)
Supported processor sockets:
LGA 1851
HDCP:
Yes
Parallel processing technology support:
Not supported
Maximum resolution:
7680 x 4320 pixels
Windows operating systems supported:
Windows 11 x64
Motherboard chipset family:
Intel
Audio chip:
Realtek ALC1220
Audio output channels:
7.1 channels
Product colour:
Black
Motherboard chipset:
Intel B860
Motherboard form factor:
ATX
Memory channels:
Dual-channel
Supported memory types:
DDR5-SDRAM
Memory slots type:
DIMM
Number of memory slots:
4
ECC сompatibility:
Non-ECC
Unbuffered memory:
Yes
Maximum internal memory:
256 GB
Width:
305 mm
Depth:
244 mm
Bluetooth version:
5.3
Top Wi-Fi standard:
Wi-Fi 6E (802.11ax)
Ethernet interface type:
2.5 Gigabit Ethernet
Ethernet LAN:
Yes
Wi-Fi standards:
Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), 802.11g
Wi-Fi:
Yes
LAN controller:
Dragon RTL8125BG
Bluetooth:
Yes
TPM connector:
Yes
RGB LED pin header:
Yes
CPU fan connector:
Yes
EPS power connector (8-pin):
Yes
Number of chassis fan connectors:
5
12V power connector:
Yes
Number of water pump connectors:
1
Number of CPU fan connectors:
2
Number of RGB LED pin headers:
1
Number of EPS power connectors (8-pin):
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
3
Front panel audio connector:
Yes
ATX Power connector (24-pin):
Yes
USB 2.0 connectors:
2
Number of SATA III connectors:
4
BIOS type:
UEFI AMI
Cables included:
SATA
Antenna included:
Yes
RAID levels:
10, 1, 5, 0
Number of storage drives supported:
7
RAID support:
Yes
Supported storage drive types:
HDD & SSD
Supported storage drive interfaces:
PCI Express 4.0, PCI Express 5.0, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
6
HDMI ports quantity:
1
Thunderbolt ports quantity:
1
Headphone outputs:
1
WiFi-AP antenna jack:
2
HDMI version:
2.1
Microphone in:
Yes
USB 2.0 ports quantity:
6
Ethernet LAN (RJ-45) ports:
1
USB connector type:
USB Type-C, USB Type-A
S/PDIF out port:
Yes
Number of M.2 (M) slots:
3
PCI Express x16 (Gen 4.x) slots:
1
1st M.2 highest PCI Express generation:
5.0
1st M.2 largest key size:
2280
3rd M.2 largest key size:
2280
3rd M.2 highest PCI Express generation:
4.0
2nd M.2 largest key size:
2280
2nd M.2 highest PCI Express generation:
4.0
PCI Express x16 (Gen 5.x) slots:
1
Warnings:
Do not open or modify the motherboard to prevent damage., When disposing of the product, follow local regulations for the recycling of electronics., In case of installation problems, contact a qualified service technician.
