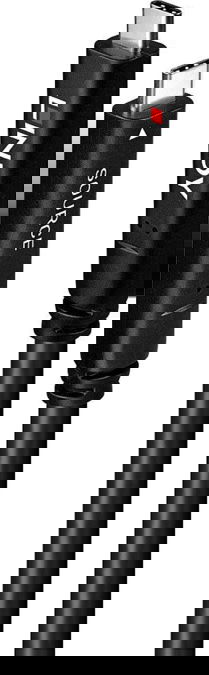

The Lindy USB 3.2 Gen 1 and DP 1.4 Type C Hybrid Cable is a unique solution, which uses optical fiber as high-speed transmission medium to perfectly transmit USB 3.2 as well as DP 1.4 data over a distance of 10m. It combines data, video and USB Power Delivery into a single, high performance cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels. A more flexible construction makes this cable simple to install, with increased resistance to RFI/EMI ensures that the cable can be installed in sensitive environments.

The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.

Please Note:

When using resolutions above 3840x2160@30Hz, USB data transfer rates reduce to 5Gbps, and resolutions above 3840x2160@60Hz transfer rates reduce further to 480Mbps.

USB devices which only support DP signals over 4 lanes might not be compatible.

Displays must have set USB settings to USB 3.0 in order to receive video via Type C.

10m USB 3.2 Gen 1 and DP 1.4 Type C Hybrid Cable for data and video extension
Data transfer rates up to 5Gbps
Supports DisplayPort 1.4 Alternate Mode with video resolutions up to 4K 3840x2160@60Hz
Supports Power Delivery up to 60W (20V 3A)
2 year warranty

Summary:

Lindy 10m USB 3.2 Gen 1 and DP 1.4 Type C Hybrid Cable. Cable length: 10 m. Connector 1: USB C, Connector 2: USB C, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Product colour: Black

Vendor Homepage:

https://www.lindy.co.uk/cables-adapters-c1/usb-c449/10m-usb-3-2-gen-1-dp-1-4-type-c-hybrid-cable-p14200

Category Code:

UCB

CnCode:

85444290

Unit Box Height:

0.06

Unit Box Length:

0.245

Unit Box Width:

0.245

Cable diameter:

6.5 mm

Cable length:

10 m

Weight:

760 g

AWG wire size:

Cable jacket material:

Polyvinyl chloride (PVC)

Cable type:

Round cable

Connector 1:

USB C

Connector 1 form factor:

Straight

Connector 1 gender:

Male

Connector 2:

USB C

Connector 2 form factor:

Straight

Connector 2 gender:

Male

Connector housing material:

Plastic

Connector shielding:

Yes

Plug and Play:

Yes

Product colour:

Black

USB version:

USB 3.2 Gen 1 (3.1 Gen 1)

Package depth:

240 mm

Package height:

65 mm

Package type:

Box

Package weight:

900 g

Package width:

240 mm

Quantity per pack:

1 pc(s)

Operating temperature (T-T):

-10 - 70 °C

Storage temperature (T-T):

-40 - 85 °C

Certification:

CE, FCC, RoHS & REACH, CP65

Model name:

10m USB 3.2 Gen 1 and DP 1.4 Type C Hybrid Cable

Units per Shipping Box:

Unit Calculated Volume:

0.003602 cubm

Unit Calculated Weight:

0.92 kg
