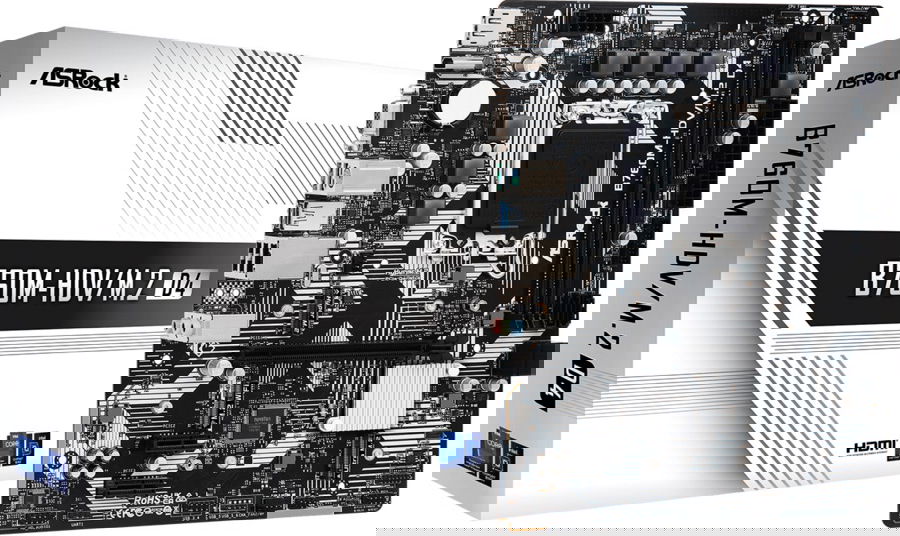

Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX
<
>
<
>
Images are illustrative. The product shown may differ from the one offered or include components not part of the product set.
VendorAsrock
Product codeB760M-HDV/M.2 D4
Warranty
3 years
Price€90.59
Price (excl. VAT)€73.06
Availability5+ pcs
Ships out in4-7 bd
Ships quicker
Mainboard|ASROCK|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B760M-HDV/M.2D4
Product code: B760M-HDV/M.2D4
Product code: B760M-HDV/M.2D4
5+ pcs
1-3 bd
€88.99
Asrock B760M-HDV M.2 D4 Motherboard Micro-ATX / Intel B760 / LGA1700 / DDR4 / M.2
Product code: 90-MXBL40-A0UAYZ
Product code: 90-MXBL40-A0UAYZ
5+ pcs
2-4 bd
€94.80
Maximum number of SMP processors:
1
Processor socket:
LGA 1700
Compatible processor series:
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor manufacturer:
Intel
HDCP:
Yes
Parallel processing technology support:
Not supported
Audio chip:
Realtek ALC897
Motherboard chipset family:
Intel
Audio output channels:
7.1 channels
Motherboard form factor:
micro ATX
Windows operating systems supported:
Windows 10 Education x64, Windows 11 x64
Motherboard chipset:
Intel B760
Memory slots type:
DIMM
Supported memory types:
DDR4-SDRAM
Memory channels:
Dual-channel
Unbuffered memory:
Yes
Number of memory slots:
2
Supported memory clock speeds:
4400, 3200, 5333 MHz
Maximum internal memory:
64 GB
ECC сompatibility:
Non-ECC
Width:
244 mm
Depth:
201 mm
Ethernet LAN:
Yes
Wi-Fi:
No
LAN controller:
Realtek RTL8111H
Ethernet interface type:
Gigabit Ethernet
ATX Power connector (24-pin):
Yes
CPU fan connector:
Yes
TPM connector:
Yes
Front panel connector:
Yes
Chassis intrusion connector:
Yes
EPS power connector (8-pin):
Yes
Number of SATA III connectors:
4
USB 2.0 connectors:
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
2
BIOS type:
UEFI AMI
Cables included:
SATA
Supported storage drive interfaces:
M.2, SATA III
RAID support:
Yes
RAID levels:
5, 0, 10, 1
Number of storage drives supported:
6
Microphone in:
Yes
PS/2 ports quantity:
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:
1
HDMI ports quantity:
1
DisplayPort version:
1.4
DisplayPorts quantity:
1
Ethernet LAN (RJ-45) ports:
1
USB 2.0 ports quantity:
2
VGA (D-Sub) ports quantity:
1
Line-in:
Yes
Number of M.2 (M) slots:
2
PCI Express x16 (Gen 4.x) slots:
1
PCI Express x1 (Gen 3.x) slots:
2
Warnings:
Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
