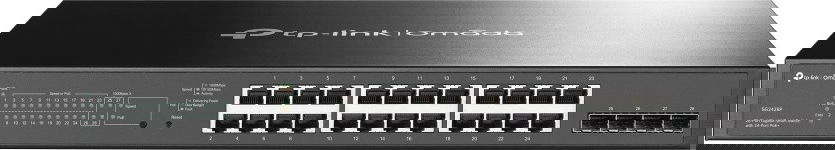

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+
<
>
<
>
Images are illustrative. The product shown may differ from the one offered or include components not part of the product set.
VendorTP-LINK
Product codeTL-SG2428P
Warranty
5 years
Price€353.60
Price (excl. VAT)€285.16
Ships in
3-5 bd
Quantity5+ pcs
Ships quicker
Form factor:
1U
Product colour:
Black
Rack mounting:
Yes
Number of fans:
2 fan(s)
Power consumption (max):
301.1 W
Power supply included:
Yes
AC input voltage:
100 - 240 V
AC input frequency:
50/60 Hz
Power source:
AC
IP-MAC-Port binding:
Yes
DHCP features:
DHCP snooping, DHCPv6 client, DHCP server, DHCP client, DHCP relay
Authentication type:
RADIUS
Access Control List (ACL):
Yes
IGMP snooping:
Yes
SSH/SSL support:
Yes
BPDU filtering/protection:
Yes
Queue scheduling algorithms:
SP, WRR+SP, Weighted Round Robin (WRR)
Security algorithms:
SSH, SNMP, SNMPv2, HTTPS, SSH-2, SNMPv3, SSL/TLS
Heat dissipation:
1052.94 BTU/h
Operating relative humidity (H-H):
10 - 90%
Storage relative humidity (H-H):
5 - 90%
Storage temperature (T-T):
-40 - 70 °C
Operating temperature (T-T):
0 - 50 °C
Switch type:
Managed
ARP inspection:
Yes
Switch layer:
L2/L2+
System event log:
Yes
MIB support:
Y
Web-based management:
Yes
Quality of Service (QoS) support:
Yes
Width:
440 mm
Depth:
220 mm
Height:
44 mm
Port mirroring:
Yes
Flow control support:
Yes
Virtual LAN features:
MAC address-based VLAN, Protocol-based VLAN, Voice VLAN
Cable types supported:
Cat4, Cat3, Cat5, Cat5e
Number of VLANs:
4000
Rate limiting:
Yes
Spanning tree protocol:
Yes
Link aggregation:
Yes
Broadcast storm control:
Yes
Networking standards:
IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1x, IEEE 802.1D, IEEE 802.3z, IEEE 802.3at, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3u, IEEE 802.3af, IEEE 802.3az, IEEE 802.1w
10G support:
No
VLAN support:
Yes
Copper ethernet cabling technology:
10BASE-T, 1000BASE-T
Firmware upgradeable:
Yes
Rack mount kit:
Yes
User guide:
Yes
Cables included:
AC
Management protocols:
SNMPv1/v2c/v3, SNTP
Gigabit Ethernet (copper) ports quantity:
24
SFP module slots quantity:
4
Basic switching RJ-45 Ethernet ports quantity:
24
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Packet buffer memory:
4.1 MB
Forwarding rate:
41.66 Mpps
Number of queues:
8
MAC address table:
8000 entries
Jumbo frames:
9000
Switching capacity:
56 Gbit/s
Jumbo frames support:
Yes
Power over Ethernet plus (PoE+) ports quantity:
24
Total Power over Ethernet (PoE) budget:
250 W
Power over Ethernet (PoE):
Yes
Power over Ethernet (PoE) power per port:
30 W
Multicast support:
Yes
Warnings:
The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations., Do not open the case or try to repair it yourself., Ensure the unit is adequately ventilated during operation.
Fiber ethernet cabling technology:
1000BASE-X
